Inspeed flex wire portable anemometer with Cateye Velo

FlexWire 3-Cup Anemometer

Regular price $95.00 USD
Sale price $95.00 USD Regular price

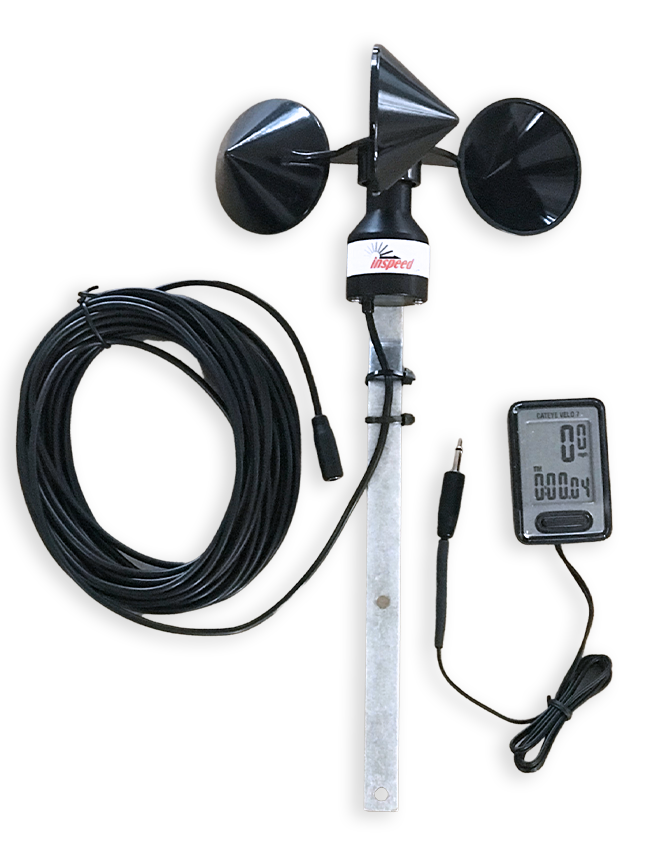

Inspeed's portable FlexWire 3-Cup Anemometer is a portable, high quality, affordable solution for measuring wind speed where AC power may not be available. This anemometer package includes a wind sensor with 25' (~8m) wire with jack connection to a digital display, and aluminum bracket with two mounting holes, so you only need a pole to mount it to.

Features You'll Love:

  • Ready to go out of the box - just connect the wind sensor to the display and it's working. Comes calibrated in mph.
  • Aluminum mounting bracket has two mounting holes for easy installation.
  • Sapphire bearing provides exceptional sensitivity to gentle breezes.
  • Accurate readings even at wind speeds exceeding 100 mph.
  • Use it anywhere - home, RV, mobile or fixed installations.
  • Thousands in use across the world
Product Details

Inspeed's FlexWire 3-Cup Anemometer

Inspeed's rugged and affordable FlexWire Anemometer combines a high quality, Inspeed-designed, Made In America wind speed sensor with a bicycle speedometer to accurately monitor wind speeds up to 125 mph (200 mph as an option).

Mount the wind speed sensor to your own pole or roof bracket, route the 25' wire however you wish and stick the display on the glass, a window, or anywhere you want. Then, connect the display and voila-you’re ready to measure wind speed!  Great for folks who want to know how fast the wind is blowing without spending $350, and for sites where AC power may not be available.

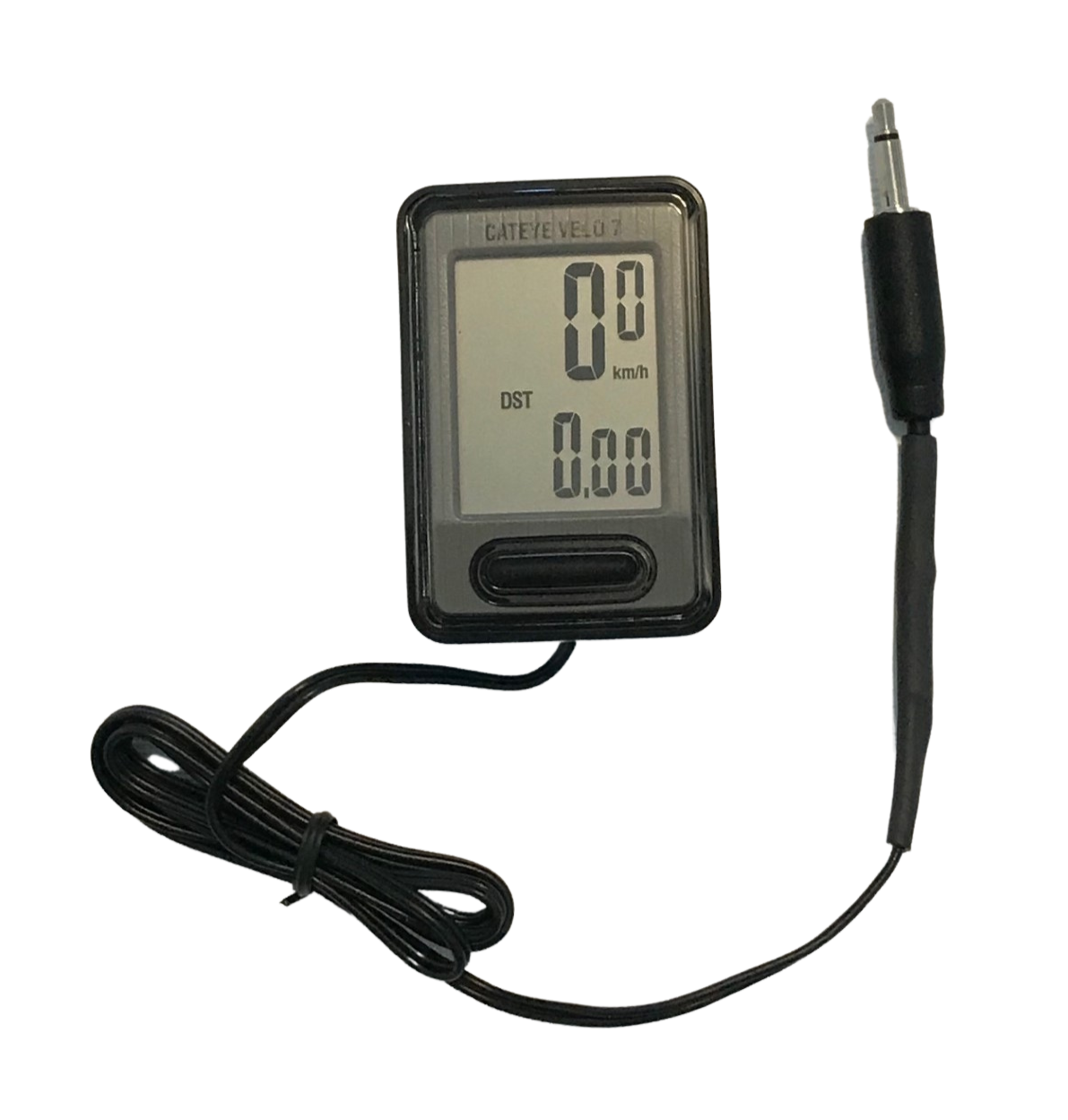

The display is a bicycle speedometer - one of two models:  the Cateye Velo7, limited to a maximum speed of 125mph and an optional Sigma Sport MC10 that is good to 200 mph.  We use bicycle speedometers because they give you the biggest bang for the buck:  low cost, fast update rates, dual display of current speed along with your choice of max or average.

The wind speed sensor comes standard with a vertical metal mounting bracket and a 25' mono audio cable that we adapt for this product - which includes a 1/8" jack connection to the display.  If you need something special, don't hesitate to reach out to us - we will see what we can do!

Display Details

The anemometer display is a bicycle speedometer - one of two models:

  1. Cateye Velo7: limited to a maximum speed of 125mph
  2. Sigma Sport MC10: limited to a maximum speed of 200 mph.

We use bicycle speedometers because they give you the biggest bang for the buck:  low cost, fast update rates, dual display of current speed along with your choice of max or average.

Specifications

Accuracy

  • 0.5 mph from 4 to 10 mph
  • the greater of 1mph or +/-4% of reading from 10 to 50 mph
  • estimated within 4% of reading above 50 mph (cannot find a calibration service to verify the accuracy above ~50mph)

Speed Range

~3 mph to 200 mph (~5 kph to over 200 kph)

Speed Resolution

  • Top Anemometer Display (Current Speed): 0.5 mph
  • Bottom Anemometer Display (Max, Average, etc.): 0.01 mph

Display

The display is a bicycle speedometer - one of two models:

  1. Cateye Velo7: limited to a maximum speed of 125mph
  2. Sigma Sport MC10: limited to a maximum speed of 200mph

We use bicycle speedometers because they give you the biggest bang for the buck:  low cost, fast update rates, dual display of current speed along with your choice of max or average.

Digit Size

  • Top Display (Current Speed): 10mm (approx. 1/2")
  • Bottom Display (Max, Average, etc.): 5mm (approx. 1/4")

Power

CR2032 Coin Battery located in the display - not the rotor/head

  • Battery life 1 to 3 years of intermittent, occasional use.
  • A few months to a year of continuous use, depending on wind conditions and mode of use
  • Display goes to low power mode "sleep" when the wind speed drops to zero, or if removed from the bracket when not in use; wakes up automatically when the rotor begins spinning

Display Update Rate

~1Hz (1 second)

Mounting Bracket

  • Supplied with an aluminum mounting bracket with 2 holes for screws.
  • Made from 1/8" x 1/2" aluminum bar stock
  • Designed to be mounted on top of a pole or other bracket.
  • Vertical bracket for anemometers/vanes, offset bracket for the E-Vane
  • Custom brackets available up request
  • Single screw head mounting means the bracket can be tilted to keep the head horizontal

Rotor Diameter

~6 in (150 mm)

Sensor Type

Inspeed offers 3 sensor types: reed switch, Hall, and Optical

  • Reed switch/magnet provide 1 pulse per rotation (more available on request)
  • Hall chip anemometers provide 1 pulse per rotation (same)
  • Hall chip E-Vanes provide 5-95% of the input voltage (3-24VDC)
  • Optical anemometers provide 8 pulses per rotation

Wire

  • Standard length is 25 feet (8m)
  • Additional options include 50 ft (15 m) and 100 ft (30 m) or more
  • Custom lengths available upon request - tested OK to over 1,500 feet
  • The wire is provided stripped and unterminated (except FlexWire and Mag Mount which have jack connections)
Instructions

Inspeed Owners Manual for Cateye Velo7

Inspeed Owners Manual for anemometers with a Cateye Velo7.

Here is a link to the PDF: Instructions for Cateye Velo7

Setting the WS on a Cateye Velo7

This is how to set the WS for a Cateye Velo7. The video shows how to set the WS to 127 - which is for a D3 Inspeed rotor; consult you instructions (or this web site) for the correct WS for your anemometer/rotor.

Here is the link to the Setting the WS on a Cateye Velo7

Inspeed Owners Manual for Sigma MC10 Display

Here are the owners instructions for Inspeed anemometers with a Sigma MC10 display.

Link: Inspeed Instructions for Sigma MC10 Display

Setting the WS on a Sigma MC10

Here is a video on how to set the WS on a Sigma Sport MC10. Consult the Owners Instructions on the correct WS for your anemometer/rotor.

Link to the video on YouTube: Setting the WS on a Sigma MC10

Setting the WS on a Cateye Velo8

Here is a video on how to set the WS on a Cateye Velo8. Consult the Owners Instructions for the correct WS for your rotor.

Link to the video on YouTube: Setting the WS on a Cateye Velo8

Setting the WS on a Sigma BC1200

This is a video on how to set the WS on a Sigma Sport BC1200 (note that there were several versions of the BC1200 - this is just one of them - they all work more or less the same way). Consult the Owners Instructions to make sure you enter the correct WS for your Inspeed anemometer/rotor.

Link to the video on YouTube: Setting the WS on a Sigma BC1200
